Parse Rhea#
Parsing Rhea into a network for LipiNet
import importlib
# Reload the module to ensure changes are picked up
#importlib.reload(lipinet)
# Now can use the functions after reloading the module
from lipinet.databases import get_prior_knowledge
from lipinet.utils import split_and_expand_large, create_nodedf_from_edgedf, check_for_split_characters
import pandas as pd
import plotly.express as px
import seaborn as sns
import missingno as msno
import matplotlib.pyplot as plt
Parsing the manual way#
# Use the get_prior_knowledge function for df_rhea
df_rhea = get_prior_knowledge('rhea', verbose=True)
df_rhea
File found locally at /Users/agjanyunlu/Documents/Metabolomics/lipinet/lipinet/.data/downloaded/rhea.tsv. Loading data...
| Reaction identifier | Equation | ChEBI name | ChEBI identifier | EC number | Enzymes | Gene Ontology | PubMed | Cross-reference (EcoCyc) | Cross-reference (MetaCyc) | Cross-reference (KEGG) | Cross-reference (Reactome) | Cross-reference (M-CSA) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0 | RHEA:21252 | (S)-2-hydroxyglutarate + A = 2-oxoglutarate + AH2 | (S)-2-hydroxyglutarate;A;2-oxoglutarate;AH2 | CHEBI:16782;CHEBI:13193;CHEBI:16810;CHEBI:17499 | EC:1.1.99.2 | 4258 | GO:0047545 2-hydroxyglutarate dehydrogenase ac... | 16746551;16005139;34555022;19586914 | NaN | MetaCyc:2-HYDROXYGLUTARATE-DEHYDROGENASE-RXN | KEGG:R00298 | NaN | NaN |
| 1 | RHEA:21256 | 3-phosphoshikimate + phosphoenolpyruvate = 5-O... | 3-phosphoshikimate;phosphoenolpyruvate;5-O-(1-... | CHEBI:145989;CHEBI:58702;CHEBI:57701;CHEBI:43474 | EC:2.5.1.19 | 44340 | GO:0003866 3-phosphoshikimate 1-carboxyvinyltr... | 4289188;1344882;11300775 | EcoCyc:2.5.1.19-RXN | MetaCyc:2.5.1.19-RXN | KEGG:R03460 | NaN | NaN |
| 2 | RHEA:21260 | [thioredoxin]-disulfide + L-methionine + H2O =... | L-cystine residue;L-methionine;H2O;L-methionin... | CHEBI:50058;CHEBI:57844;CHEBI:15377;CHEBI:5877... | EC:1.8.4.14 | 3112 | GO:0033745 L-methionine-(R)-S-oxide reductase ... | 20382110;20504774;20851894;19049972;12504094;2... | EcoCyc:1.8.4.14-RXN | MetaCyc:1.8.4.14-RXN | KEGG:R07608 | NaN | NaN |
| 3 | RHEA:21264 | glycolate + A = glyoxylate + AH2 | glycolate;A;glyoxylate;AH2 | CHEBI:29805;CHEBI:13193;CHEBI:36655;CHEBI:17499 | EC:1.1.99.14 | 14321 | GO:0019154 glycolate dehydrogenase activity | 4557653 | EcoCyc:GLYCOLATEDEHYDRO-RXN | MetaCyc:GLYCOLATEDEHYDRO-RXN | KEGG:R00476 | NaN | NaN |
| 4 | RHEA:21268 | (R)-canadine + 2 NADP(+) = berberine + 2 NADPH... | (R)-canadine;NADP(+);berberine;NADPH;H(+) | CHEBI:18146;CHEBI:58349;CHEBI:16118;CHEBI:5778... | EC:1.5.1.31 | 0 | GO:0050623 berberine reductase activity | NaN | NaN | MetaCyc:1.5.1.31-RXN | KEGG:R07169 | NaN | NaN |
| ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... |
| 17778 | RHEA:21232 | L-histidine = trans-urocanate + NH4(+) | L-histidine;trans-urocanate;NH4(+) | CHEBI:57595;CHEBI:17771;CHEBI:28938 | EC:4.3.1.3 | 21113 | GO:0004397 histidine ammonia-lyase activity | 15906398;11732994;39337646 | NaN | MetaCyc:HISTIDINE-AMMONIA-LYASE-RXN | KEGG:R01168 | Reactome:R-HSA-70899.6 | NaN |
| 17779 | RHEA:21236 | anthranilate + NADPH + O2 + 2 H(+) = 2,3-dihyd... | anthranilate;NADPH;O2;H(+);2,3-dihydroxybenzoa... | CHEBI:16567;CHEBI:57783;CHEBI:15379;CHEBI:1537... | EC:1.14.13.35 | 0 | GO:0018672 anthranilate 3-monooxygenase (deami... | 6501219;3793735 | NaN | MetaCyc:1.14.13.35-RXN | KEGG:R00980 | NaN | NaN |
| 17780 | RHEA:21240 | geranylgeranyl diphosphate + L-cysteinyl-[prot... | geranylgeranyl diphosphate;L-cysteine residue;... | CHEBI:57533;CHEBI:29950;CHEBI:86021;CHEBI:33019 | EC:2.5.1.59;EC:2.5.1.60 | 10991 | GO:0004661 protein geranylgeranyltransferase a... | 12036349;9121446;19894725;8106351;10745007;126... | NaN | MetaCyc:RXN-3701 | NaN | NaN | NaN |
| 17781 | RHEA:21244 | an 8-hydroxyfurocoumarin + S-adenosyl-L-methio... | an 8-hydroxyfurocoumarin;S-adenosyl-L-methioni... | CHEBI:52025;CHEBI:59789;CHEBI:52028;CHEBI:5785... | EC:2.1.1.70 | 0 | NaN | 156999;15009205;28084 | NaN | MetaCyc:2.1.1.70-RXN | KEGG:R02982 | NaN | NaN |
| 17782 | RHEA:21248 | RNA(n) + a ribonucleoside 5'-triphosphate = RN... | (nucleoside 5'-monophosphate)n;a ribonucleosid... | CHEBI:140395;CHEBI:61557;CHEBI:33019 | EC:2.7.7.6;EC:2.7.7.48 | 465623 | GO:0034062 5'-3' RNA polymerase activity | 4946277;5289245;4501121 | EcoCyc:DNA-DIRECTED-RNA-POLYMERASE-RXN | MetaCyc:DNA-DIRECTED-RNA-POLYMERASE-RXN,MetaCy... | KEGG:R00444 | NaN | NaN |
17783 rows × 13 columns

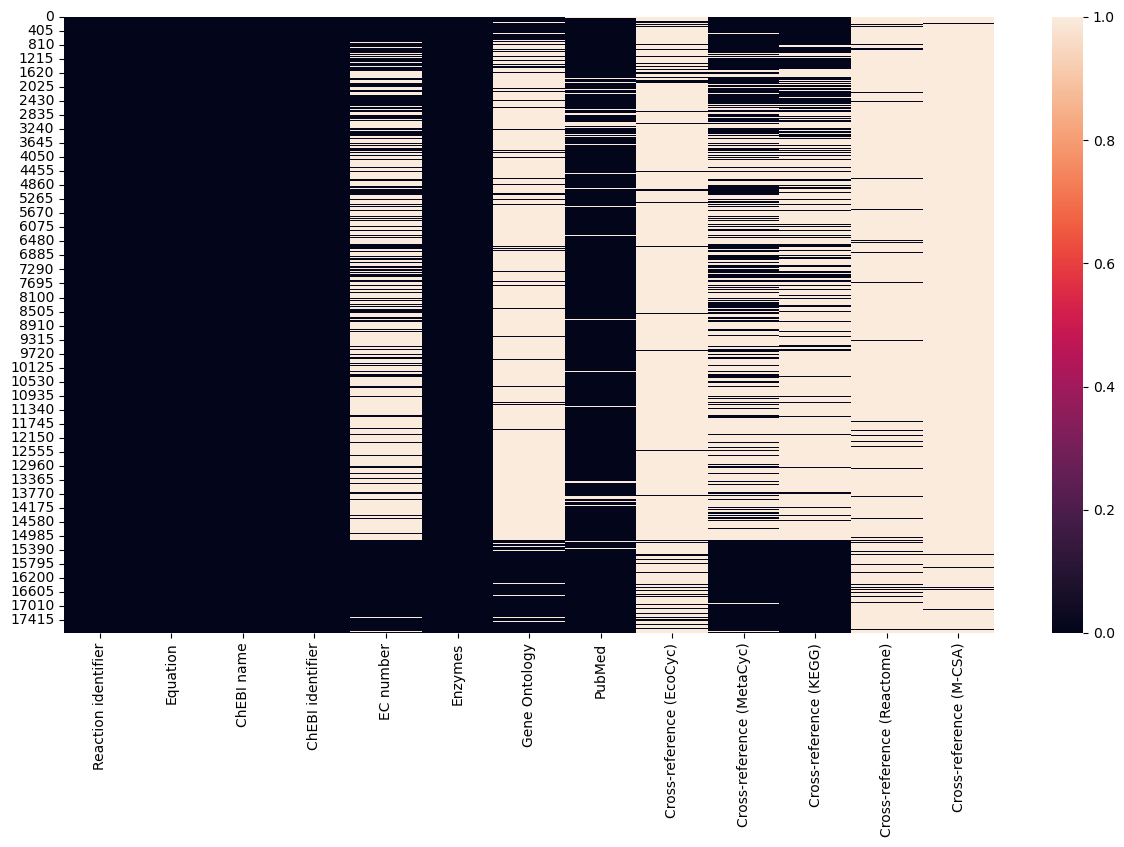

# Create a figure with a specific size
fig, ax = plt.subplots(figsize=(15, 8)) # Adjust the figsize parameter (width, height)
# Create the heatmap
sns.heatmap(df_rhea.isnull(), ax=ax) #sns.heatmap(df, ax=ax, cmap="YlGnBu")
<Axes: >
What is the most common participant identifier across all entries?
df_rhea['ChEBI identifier'].str.split(';').explode().value_counts()
ChEBI identifier
CHEBI:15378 9932
CHEBI:15377 6485
CHEBI:15379 2851
CHEBI:57287 1567
CHEBI:58349 1335
...
CHEBI:138211 1
CHEBI:138191 1
CHEBI:18534 1
CHEBI:18533 1
CHEBI:52028 1
Name: count, Length: 13723, dtype: int64
What are the names of these molecules?
df_rhea['ChEBI name'].str.split(';').explode().value_counts()
ChEBI name
H(+) 9932
H2O 6485
O2 2851
CoA 1567
NADP(+) 1335
...
1-octadecanoyl-2-pentanoyl-sn-glycero-3-phosphocholine 1
3'-(N-acyl-L-alpha-aminoacyl)adenylyl 3'-end residue 1
campest-4-en-3-one 1
5alpha-campestan-3-one 1
an 8-methoxyfurocoumarin 1
Name: count, Length: 13723, dtype: int64
So it seems that Hydrogen ions, water, and O2 are the most common ChEBI molecules in Rhea
Are there any commonly represented GO terms?
df_rhea['Gene Ontology'].value_counts(dropna=False)
Gene Ontology
NaN 13398
GO:0047545 2-hydroxyglutarate dehydrogenase activity 1
GO:0015046 rubredoxin-NADP+ reductase activity 1
GO:0004413 homoserine kinase activity 1
GO:0008721 D-serine ammonia-lyase activity 1
...
GO:0008176 tRNA (guanine(46)-N7)-methyltransferase activity 1
GO:0030697 tRNA (uracil(54)-C5)-methyltransferase activity, S-adenosyl methionine-dependent 1
GO:0043828 tRNA 2-selenouridine synthase activity 1
GO:0052914 16S rRNA (guanine(1207)-N(2))-methyltransferase activity 1
GO:0034062 5'-3' RNA polymerase activity 1
Name: count, Length: 4386, dtype: int64
It seems that all GO terms are unique, besides the ones that are NaN.
What about common enzyme classes?
# df_rhea['Enzyme class'].value_counts()
How many don’t have any ec class?
df_rhea['EC number'].notna().value_counts()
EC number
False 10214
True 7569
Name: count, dtype: int64
What about EC number, taking into account the possibility for multiple enzyme class numbers to be assigned per reaction?
df_rhea['EC number'].str.split(';').explode().value_counts()
EC number
EC:3.6.1.9 14
EC:1.14.13.105 13
EC:1.14.12.23 12
EC:2.7.4.6 12
EC:3.1.3.62 12
..
EC:2.5.1.122 1
EC:2.5.1.121 1
EC:2.4.1.328 1
EC:2.4.1.326 1
EC:2.7.7.48 1
Name: count, Length: 6153, dtype: int64
How common is it actually to have multiple EC numbers?
df_rhea['EC number'].str.split(';').str.len().value_counts()
EC number
1.0 7343
2.0 202
3.0 18
17.0 2
7.0 2
5.0 1
4.0 1
Name: count, dtype: int64
Note that the IUBMB number actually is determined by a hierarchy. Because of this, let’s turn it into a nice df ready to be parsed as a hierarchy.
Preparing the Rhea enzyme classification (EC) info#
def process_ec_numbers(df):
"""
Process the 'EC number' column of the input DataFrame.
Parameters:
df (pd.DataFrame): A DataFrame containing an 'EC number' column.
Returns:
pd.DataFrame: A new DataFrame with the following columns:
- 'EC_number': The reassembled EC number in the format 'EC:Main_Class.Subclass.Subsubclass.Serial_Number'
- 'Main_Class': The first part of the EC number.
- 'Subclass': The second part of the EC number.
- 'Subsubclass': The third part of the EC number.
- 'Serial_Number': The fourth part of the EC number.
"""
# Split, explode, deduplicate, clean and split by '.' into a Series of lists.
ec_num_series = df['EC number'].str.split(';')\
.explode()\
.drop_duplicates()\
.dropna()\
.str.strip('EC:')\
.str.split('.')
# Convert the Series of lists into a DataFrame with named columns.
df_ec = pd.DataFrame(ec_num_series.tolist(),
columns=["Main_Class", "Subclass", "Subsubclass", "Serial_Number"])
# Create a new column with the reassembled EC number in the original format.
df_ec.insert(0, 'EC_number',
'EC:' + df_ec["Main_Class"].astype(str) + '.' +
df_ec["Subclass"].astype(str) + '.' +
df_ec["Subsubclass"].astype(str) + '.' +
df_ec["Serial_Number"].astype(str))
return df_ec
# Assuming df_rhea is your original DataFrame with the 'EC number' column.
df_ec = process_ec_numbers(df_rhea)
df_ec
| EC_number | Main_Class | Subclass | Subsubclass | Serial_Number | |
|---|---|---|---|---|---|
| 0 | EC:1.1.99.2 | 1 | 1 | 99 | 2 |
| 1 | EC:2.5.1.19 | 2 | 5 | 1 | 19 |
| 2 | EC:1.8.4.14 | 1 | 8 | 4 | 14 |
| 3 | EC:1.1.99.14 | 1 | 1 | 99 | 14 |
| 4 | EC:1.5.1.31 | 1 | 5 | 1 | 31 |
| ... | ... | ... | ... | ... | ... |
| 6148 | EC:1.14.13.35 | 1 | 14 | 13 | 35 |
| 6149 | EC:2.5.1.59 | 2 | 5 | 1 | 59 |
| 6150 | EC:2.5.1.60 | 2 | 5 | 1 | 60 |
| 6151 | EC:2.7.7.6 | 2 | 7 | 7 | 6 |
| 6152 | EC:2.7.7.48 | 2 | 7 | 7 | 48 |
6153 rows × 5 columns
def build_rhea_ec_edges_and_nodes(df_ec: pd.DataFrame):
"""
Given a DataFrame with EC hierarchy columns:
Main_Class, Subclass, Subsubclass, EC_number,
this function creates:
- A DataFrame of edges linking each hierarchical level.
- A DataFrame of unique nodes with a 'ec_level' column
indicating the node's level in the hierarchy.
"""
# -- Make a copy so we don't modify the original df in-place
df = df_ec.copy()
# 1) Build the node representations for each hierarchy level
# (convert to string just in case they're numeric)
df["main_node"] = "EC:" + df["Main_Class"].astype(str)
df["subclass_node"] = (
"EC:" + df["Main_Class"].astype(str)
+ "." + df["Subclass"].astype(str)
)
df["subsubclass_node"] = (
"EC:" + df["Main_Class"].astype(str)
+ "." + df["Subclass"].astype(str)
+ "." + df["Subsubclass"].astype(str)
)
# 2) Create edges for each hierarchical link and label them
edges1 = df[["main_node", "subclass_node"]].rename(
columns={"main_node": "source_id", "subclass_node": "target_id"}
)
edges1["ec_level"] = "main_class->subclass"
edges2 = df[["subclass_node", "subsubclass_node"]].rename(
columns={"subclass_node": "source_id", "subsubclass_node": "target_id"}
)
edges2["ec_level"] = "subclass->subsubclass"
edges3 = df[["subsubclass_node", "EC_number"]].rename(
columns={"subsubclass_node": "source_id", "EC_number": "target_id"}
)
edges3["ec_level"] = "subsubclass->EC_number"
# Concatenate edges and drop duplicates
edges_df = pd.concat([edges1, edges2, edges3], ignore_index=True).drop_duplicates()
# Add the additional columns for your graph structure
edges_df["source_layer"] = "rhea_ec"
edges_df["target_layer"] = "rhea_ec"
edges_df["interlayer"] = False
# 3) Build a node DataFrame from all unique source/target IDs
nodes_df = pd.DataFrame(
pd.concat([edges_df["source_id"], edges_df["target_id"]]).unique(),
columns=["node_id"]
)
nodes_df["layer"] = "rhea_ec" # same layer for all
# 4) Build a small lookup table to label each node with ec_level
# We'll mark each node as either "main_class", "subclass", "subsubclass", or "full_ec".
df_main = (
df[["main_node"]].drop_duplicates().rename(columns={"main_node": "node_id"})
)
df_main["ec_level"] = "main_class"
df_sub = (
df[["subclass_node"]].drop_duplicates().rename(columns={"subclass_node": "node_id"})
)
df_sub["ec_level"] = "subclass"
df_subsub = (
df[["subsubclass_node"]].drop_duplicates().rename(columns={"subsubclass_node": "node_id"})
)
df_subsub["ec_level"] = "subsubclass"
df_full = (
df[["EC_number"]].drop_duplicates().rename(columns={"EC_number": "node_id"})
)
df_full["ec_level"] = "full_ec"
df_nodes_level = pd.concat([df_main, df_sub, df_subsub, df_full], ignore_index=True)
df_nodes_level.drop_duplicates(subset="node_id", inplace=True)
# 5) Merge the node-level info into the nodes_df
nodes_df = nodes_df.merge(df_nodes_level, on="node_id", how="left")
# Return the final DataFrames
return edges_df, nodes_df
# Example usage:
# df_edges_rhea_ec, df_nodes_rhea_ec = build_rhea_ec_edges_and_nodes(df_ec)
df_edges_rhea_ec, df_nodes_rhea_ec = build_rhea_ec_edges_and_nodes(df_ec)
df_edges_rhea_ec
| source_id | target_id | ec_level | source_layer | target_layer | interlayer | |
|---|---|---|---|---|---|---|
| 0 | EC:1 | EC:1.1 | main_class->subclass | rhea_ec | rhea_ec | False |
| 1 | EC:2 | EC:2.5 | main_class->subclass | rhea_ec | rhea_ec | False |
| 2 | EC:1 | EC:1.8 | main_class->subclass | rhea_ec | rhea_ec | False |
| 4 | EC:1 | EC:1.5 | main_class->subclass | rhea_ec | rhea_ec | False |
| 5 | EC:6 | EC:6.3 | main_class->subclass | rhea_ec | rhea_ec | False |
| ... | ... | ... | ... | ... | ... | ... |
| 18454 | EC:1.14.13 | EC:1.14.13.35 | subsubclass->EC_number | rhea_ec | rhea_ec | False |
| 18455 | EC:2.5.1 | EC:2.5.1.59 | subsubclass->EC_number | rhea_ec | rhea_ec | False |
| 18456 | EC:2.5.1 | EC:2.5.1.60 | subsubclass->EC_number | rhea_ec | rhea_ec | False |
| 18457 | EC:2.7.7 | EC:2.7.7.6 | subsubclass->EC_number | rhea_ec | rhea_ec | False |
| 18458 | EC:2.7.7 | EC:2.7.7.48 | subsubclass->EC_number | rhea_ec | rhea_ec | False |
6482 rows × 6 columns
df_nodes_rhea_ec
| node_id | layer | ec_level | |
|---|---|---|---|
| 0 | EC:1 | rhea_ec | main_class |
| 1 | EC:2 | rhea_ec | main_class |
| 2 | EC:6 | rhea_ec | main_class |
| 3 | EC:3 | rhea_ec | main_class |
| 4 | EC:5 | rhea_ec | main_class |
| ... | ... | ... | ... |
| 6484 | EC:1.14.13.35 | rhea_ec | full_ec |
| 6485 | EC:2.5.1.59 | rhea_ec | full_ec |
| 6486 | EC:2.5.1.60 | rhea_ec | full_ec |
| 6487 | EC:2.7.7.6 | rhea_ec | full_ec |
| 6488 | EC:2.7.7.48 | rhea_ec | full_ec |
6489 rows × 3 columns
Preparing the remaining Rhea info#
Now we have created the df of nodes and edges for just the enzyme classification info. We want to also create nodes and edges for all relevant rhea info too.
def explode_columns(df, columns, delimiter=";"):
"""
Split and explode the specified columns of a DataFrame.
Parameters:
df (pd.DataFrame): Input DataFrame.
columns (list of str): List of column names to split by the delimiter.
delimiter (str): The delimiter to use when splitting the column values.
Returns:
pd.DataFrame: A new DataFrame with the specified columns exploded.
Note:
Each row in the specified columns must produce lists of the same length.
"""
df = df.copy()
for col in columns:
if col not in df.columns:
raise ValueError(f"Column '{col}' does not exist in the DataFrame.")
df[col] = df[col].str.split(delimiter)
return df.explode(columns)
df_rhea_exploded = explode_columns(df_rhea, ["ChEBI identifier", "ChEBI name"])
df_rhea_exploded
| Reaction identifier | Equation | ChEBI name | ChEBI identifier | EC number | Enzymes | Gene Ontology | PubMed | Cross-reference (EcoCyc) | Cross-reference (MetaCyc) | Cross-reference (KEGG) | Cross-reference (Reactome) | Cross-reference (M-CSA) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0 | RHEA:21252 | (S)-2-hydroxyglutarate + A = 2-oxoglutarate + AH2 | (S)-2-hydroxyglutarate | CHEBI:16782 | EC:1.1.99.2 | 4258 | GO:0047545 2-hydroxyglutarate dehydrogenase ac... | 16746551;16005139;34555022;19586914 | NaN | MetaCyc:2-HYDROXYGLUTARATE-DEHYDROGENASE-RXN | KEGG:R00298 | NaN | NaN |
| 0 | RHEA:21252 | (S)-2-hydroxyglutarate + A = 2-oxoglutarate + AH2 | A | CHEBI:13193 | EC:1.1.99.2 | 4258 | GO:0047545 2-hydroxyglutarate dehydrogenase ac... | 16746551;16005139;34555022;19586914 | NaN | MetaCyc:2-HYDROXYGLUTARATE-DEHYDROGENASE-RXN | KEGG:R00298 | NaN | NaN |
| 0 | RHEA:21252 | (S)-2-hydroxyglutarate + A = 2-oxoglutarate + AH2 | 2-oxoglutarate | CHEBI:16810 | EC:1.1.99.2 | 4258 | GO:0047545 2-hydroxyglutarate dehydrogenase ac... | 16746551;16005139;34555022;19586914 | NaN | MetaCyc:2-HYDROXYGLUTARATE-DEHYDROGENASE-RXN | KEGG:R00298 | NaN | NaN |
| 0 | RHEA:21252 | (S)-2-hydroxyglutarate + A = 2-oxoglutarate + AH2 | AH2 | CHEBI:17499 | EC:1.1.99.2 | 4258 | GO:0047545 2-hydroxyglutarate dehydrogenase ac... | 16746551;16005139;34555022;19586914 | NaN | MetaCyc:2-HYDROXYGLUTARATE-DEHYDROGENASE-RXN | KEGG:R00298 | NaN | NaN |
| 1 | RHEA:21256 | 3-phosphoshikimate + phosphoenolpyruvate = 5-O... | 3-phosphoshikimate | CHEBI:145989 | EC:2.5.1.19 | 44340 | GO:0003866 3-phosphoshikimate 1-carboxyvinyltr... | 4289188;1344882;11300775 | EcoCyc:2.5.1.19-RXN | MetaCyc:2.5.1.19-RXN | KEGG:R03460 | NaN | NaN |
| ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... |
| 17781 | RHEA:21244 | an 8-hydroxyfurocoumarin + S-adenosyl-L-methio... | S-adenosyl-L-homocysteine | CHEBI:57856 | EC:2.1.1.70 | 0 | NaN | 156999;15009205;28084 | NaN | MetaCyc:2.1.1.70-RXN | KEGG:R02982 | NaN | NaN |
| 17781 | RHEA:21244 | an 8-hydroxyfurocoumarin + S-adenosyl-L-methio... | H(+) | CHEBI:15378 | EC:2.1.1.70 | 0 | NaN | 156999;15009205;28084 | NaN | MetaCyc:2.1.1.70-RXN | KEGG:R02982 | NaN | NaN |
| 17782 | RHEA:21248 | RNA(n) + a ribonucleoside 5'-triphosphate = RN... | (nucleoside 5'-monophosphate)n | CHEBI:140395 | EC:2.7.7.6;EC:2.7.7.48 | 465623 | GO:0034062 5'-3' RNA polymerase activity | 4946277;5289245;4501121 | EcoCyc:DNA-DIRECTED-RNA-POLYMERASE-RXN | MetaCyc:DNA-DIRECTED-RNA-POLYMERASE-RXN,MetaCy... | KEGG:R00444 | NaN | NaN |
| 17782 | RHEA:21248 | RNA(n) + a ribonucleoside 5'-triphosphate = RN... | a ribonucleoside 5'-triphosphate | CHEBI:61557 | EC:2.7.7.6;EC:2.7.7.48 | 465623 | GO:0034062 5'-3' RNA polymerase activity | 4946277;5289245;4501121 | EcoCyc:DNA-DIRECTED-RNA-POLYMERASE-RXN | MetaCyc:DNA-DIRECTED-RNA-POLYMERASE-RXN,MetaCy... | KEGG:R00444 | NaN | NaN |
| 17782 | RHEA:21248 | RNA(n) + a ribonucleoside 5'-triphosphate = RN... | diphosphate | CHEBI:33019 | EC:2.7.7.6;EC:2.7.7.48 | 465623 | GO:0034062 5'-3' RNA polymerase activity | 4946277;5289245;4501121 | EcoCyc:DNA-DIRECTED-RNA-POLYMERASE-RXN | MetaCyc:DNA-DIRECTED-RNA-POLYMERASE-RXN,MetaCy... | KEGG:R00444 | NaN | NaN |
83885 rows × 13 columns
df_edges_rhea_reactiontochebi = df_rhea_exploded.copy()
df_edges_rhea_reactiontochebi = df_edges_rhea_reactiontochebi[['Reaction identifier', 'ChEBI identifier']] #,'ChEBI name'
df_edges_rhea_reactiontochebi.columns = ['target_id', 'source_id']
df_edges_rhea_reactiontochebi['source_layer'] = 'rhea_chebiid'
df_edges_rhea_reactiontochebi['target_layer'] = 'rhea_reactionid'
df_edges_rhea_reactiontochebi['interlayer'] = False
df_edges_rhea_reactiontochebi
| target_id | source_id | source_layer | target_layer | interlayer | |
|---|---|---|---|---|---|
| 0 | RHEA:21252 | CHEBI:16782 | rhea_chebiid | rhea_reactionid | False |
| 0 | RHEA:21252 | CHEBI:13193 | rhea_chebiid | rhea_reactionid | False |
| 0 | RHEA:21252 | CHEBI:16810 | rhea_chebiid | rhea_reactionid | False |
| 0 | RHEA:21252 | CHEBI:17499 | rhea_chebiid | rhea_reactionid | False |
| 1 | RHEA:21256 | CHEBI:145989 | rhea_chebiid | rhea_reactionid | False |
| ... | ... | ... | ... | ... | ... |
| 17781 | RHEA:21244 | CHEBI:57856 | rhea_chebiid | rhea_reactionid | False |
| 17781 | RHEA:21244 | CHEBI:15378 | rhea_chebiid | rhea_reactionid | False |
| 17782 | RHEA:21248 | CHEBI:140395 | rhea_chebiid | rhea_reactionid | False |
| 17782 | RHEA:21248 | CHEBI:61557 | rhea_chebiid | rhea_reactionid | False |
| 17782 | RHEA:21248 | CHEBI:33019 | rhea_chebiid | rhea_reactionid | False |
83885 rows × 5 columns
df_rhea.columns
Index(['Reaction identifier', 'Equation', 'ChEBI name', 'ChEBI identifier',
'EC number', 'Enzymes', 'Gene Ontology', 'PubMed',
'Cross-reference (EcoCyc)', 'Cross-reference (MetaCyc)',
'Cross-reference (KEGG)', 'Cross-reference (Reactome)',
'Cross-reference (M-CSA)'],
dtype='object')
df_nodes_rhea_chebiid = df_rhea_exploded[['ChEBI identifier', 'ChEBI name']].rename(
columns={'ChEBI identifier': 'node_id', 'ChEBI name': 'chebi_name'}
).assign(layer='rhea_chebiid').drop_duplicates()
# df_nodes_rhea_chebiid
# previously also included 'Participant identifier','Enzyme class'
df_nodes_rhea_reactionid = df_rhea[['Reaction identifier','Equation','ChEBI identifier', 'ChEBI name','EC number','Enzymes','Gene Ontology','Cross-reference (Reactome)',
'PubMed','Cross-reference (KEGG)']].rename(
columns={'Reaction identifier': 'node_id', 'ChEBI name': 'chebi_name'}
).assign(layer='rhea_reactionid').drop_duplicates()
# df_nodes_rhea_reactionid
# df_nodes_rhea_reactiontochebi = pd.concat([df_nodes_rhea_chebiid, df_nodes_rhea_reactionid])
# df_nodes_rhea_reactiontochebi
df_rhea_exploded_enzymeclass = explode_columns(df_rhea, ["EC number"], delimiter=';')
df_rhea_exploded_enzymeclass
df_edges_rhea_reactiontoenzymeclass = df_rhea_exploded_enzymeclass[['Reaction identifier', 'EC number']].rename(
columns={'Reaction identifier': 'source_id', 'EC number': 'target_id'}
).assign(source_layer='rhea_reactionid', target_layer='rhea_ec', interlayer=False).drop_duplicates()
df_edges_rhea_reactiontoenzymeclass
df_edges_rhea_reactiontochebi_comb = pd.concat([df_edges_rhea_reactiontochebi, df_edges_rhea_reactiontoenzymeclass,])
df_edges_rhea_reactiontochebi_comb
# Remake nodes with enzyme class included
df_nodes_rhea_reactiontochebi_comb = pd.concat([df_nodes_rhea_chebiid,
df_nodes_rhea_reactionid,
df_nodes_rhea_ec])
df_nodes_rhea_reactiontochebi_comb
| node_id | chebi_name | layer | Equation | ChEBI identifier | EC number | Enzymes | Gene Ontology | Cross-reference (Reactome) | PubMed | Cross-reference (KEGG) | ec_level | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0 | CHEBI:16782 | (S)-2-hydroxyglutarate | rhea_chebiid | NaN | NaN | NaN | NaN | NaN | NaN | NaN | NaN | NaN |
| 0 | CHEBI:13193 | A | rhea_chebiid | NaN | NaN | NaN | NaN | NaN | NaN | NaN | NaN | NaN |
| 0 | CHEBI:16810 | 2-oxoglutarate | rhea_chebiid | NaN | NaN | NaN | NaN | NaN | NaN | NaN | NaN | NaN |
| 0 | CHEBI:17499 | AH2 | rhea_chebiid | NaN | NaN | NaN | NaN | NaN | NaN | NaN | NaN | NaN |
| 1 | CHEBI:145989 | 3-phosphoshikimate | rhea_chebiid | NaN | NaN | NaN | NaN | NaN | NaN | NaN | NaN | NaN |
| ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... |
| 6484 | EC:1.14.13.35 | NaN | rhea_ec | NaN | NaN | NaN | NaN | NaN | NaN | NaN | NaN | full_ec |
| 6485 | EC:2.5.1.59 | NaN | rhea_ec | NaN | NaN | NaN | NaN | NaN | NaN | NaN | NaN | full_ec |
| 6486 | EC:2.5.1.60 | NaN | rhea_ec | NaN | NaN | NaN | NaN | NaN | NaN | NaN | NaN | full_ec |
| 6487 | EC:2.7.7.6 | NaN | rhea_ec | NaN | NaN | NaN | NaN | NaN | NaN | NaN | NaN | full_ec |
| 6488 | EC:2.7.7.48 | NaN | rhea_ec | NaN | NaN | NaN | NaN | NaN | NaN | NaN | NaN | full_ec |
37995 rows × 12 columns
df_edges_rhea_reactiontochebi_comb
| target_id | source_id | source_layer | target_layer | interlayer | |
|---|---|---|---|---|---|
| 0 | RHEA:21252 | CHEBI:16782 | rhea_chebiid | rhea_reactionid | False |
| 0 | RHEA:21252 | CHEBI:13193 | rhea_chebiid | rhea_reactionid | False |
| 0 | RHEA:21252 | CHEBI:16810 | rhea_chebiid | rhea_reactionid | False |
| 0 | RHEA:21252 | CHEBI:17499 | rhea_chebiid | rhea_reactionid | False |
| 1 | RHEA:21256 | CHEBI:145989 | rhea_chebiid | rhea_reactionid | False |
| ... | ... | ... | ... | ... | ... |
| 17780 | EC:2.5.1.59 | RHEA:21240 | rhea_reactionid | rhea_ec | False |
| 17780 | EC:2.5.1.60 | RHEA:21240 | rhea_reactionid | rhea_ec | False |
| 17781 | EC:2.1.1.70 | RHEA:21244 | rhea_reactionid | rhea_ec | False |
| 17782 | EC:2.7.7.6 | RHEA:21248 | rhea_reactionid | rhea_ec | False |
| 17782 | EC:2.7.7.48 | RHEA:21248 | rhea_reactionid | rhea_ec | False |
101957 rows × 5 columns
Get all chebi ids
df_nodes_rhea_reactiontochebi_comb[df_nodes_rhea_reactiontochebi_comb['layer']=='rhea_chebiid']['node_id'].drop_duplicates()
0 CHEBI:16782
0 CHEBI:13193
0 CHEBI:16810
0 CHEBI:17499
1 CHEBI:145989
...
17773 CHEBI:144586
17775 CHEBI:57639
17777 CHEBI:18167
17781 CHEBI:52025
17781 CHEBI:52028
Name: node_id, Length: 13723, dtype: object
Using the LipiNet parse_rhea function#
The LipiNet parse_rhea function automatically runs through all of the same steps as we have just covered.
from lipinet.parse_rhea import parse_rhea_data
rhea_results = parse_rhea_data(verbose=False)
df_rhea_nodes = rhea_results['df_nodes']
df_rhea_edges = rhea_results['df_edges']
df_rhea_nodes
| node_id | Equation | ChEBI identifier | chebi_name | EC number | Enzymes | Gene Ontology | Cross-reference (Reactome) | layer | ec_level | |
|---|---|---|---|---|---|---|---|---|---|---|
| 0 | RHEA:21252 | (S)-2-hydroxyglutarate + A = 2-oxoglutarate + AH2 | CHEBI:16782;CHEBI:13193;CHEBI:16810;CHEBI:17499 | (S)-2-hydroxyglutarate;A;2-oxoglutarate;AH2 | EC:1.1.99.2 | 4258.0 | GO:0047545 2-hydroxyglutarate dehydrogenase ac... | NaN | rhea_reactionid | NaN |
| 1 | RHEA:21256 | 3-phosphoshikimate + phosphoenolpyruvate = 5-O... | CHEBI:145989;CHEBI:58702;CHEBI:57701;CHEBI:43474 | 3-phosphoshikimate;phosphoenolpyruvate;5-O-(1-... | EC:2.5.1.19 | 44340.0 | GO:0003866 3-phosphoshikimate 1-carboxyvinyltr... | NaN | rhea_reactionid | NaN |
| 2 | RHEA:21260 | [thioredoxin]-disulfide + L-methionine + H2O =... | CHEBI:50058;CHEBI:57844;CHEBI:15377;CHEBI:5877... | L-cystine residue;L-methionine;H2O;L-methionin... | EC:1.8.4.14 | 3112.0 | GO:0033745 L-methionine-(R)-S-oxide reductase ... | NaN | rhea_reactionid | NaN |
| 3 | RHEA:21264 | glycolate + A = glyoxylate + AH2 | CHEBI:29805;CHEBI:13193;CHEBI:36655;CHEBI:17499 | glycolate;A;glyoxylate;AH2 | EC:1.1.99.14 | 14321.0 | GO:0019154 glycolate dehydrogenase activity | NaN | rhea_reactionid | NaN |
| 4 | RHEA:21268 | (R)-canadine + 2 NADP(+) = berberine + 2 NADPH... | CHEBI:18146;CHEBI:58349;CHEBI:16118;CHEBI:5778... | (R)-canadine;NADP(+);berberine;NADPH;H(+) | EC:1.5.1.31 | 0.0 | GO:0050623 berberine reductase activity | NaN | rhea_reactionid | NaN |
| ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... |
| 37990 | EC:1.14.13.35 | NaN | NaN | NaN | NaN | NaN | NaN | NaN | rhea_ec | full_ec |
| 37991 | EC:2.5.1.59 | NaN | NaN | NaN | NaN | NaN | NaN | NaN | rhea_ec | full_ec |
| 37992 | EC:2.5.1.60 | NaN | NaN | NaN | NaN | NaN | NaN | NaN | rhea_ec | full_ec |
| 37993 | EC:2.7.7.6 | NaN | NaN | NaN | NaN | NaN | NaN | NaN | rhea_ec | full_ec |
| 37994 | EC:2.7.7.48 | NaN | NaN | NaN | NaN | NaN | NaN | NaN | rhea_ec | full_ec |
37995 rows × 10 columns
df_rhea_edges
| source_id | target_id | ec_level | source_layer | target_layer | interlayer | edge_type | |
|---|---|---|---|---|---|---|---|
| 0 | EC:1 | EC:1.1 | main_class->subclass | rhea_ec | rhea_ec | False | ec_hierarchy |
| 1 | EC:2 | EC:2.5 | main_class->subclass | rhea_ec | rhea_ec | False | ec_hierarchy |
| 2 | EC:1 | EC:1.8 | main_class->subclass | rhea_ec | rhea_ec | False | ec_hierarchy |
| 3 | EC:1 | EC:1.5 | main_class->subclass | rhea_ec | rhea_ec | False | ec_hierarchy |
| 4 | EC:6 | EC:6.3 | main_class->subclass | rhea_ec | rhea_ec | False | ec_hierarchy |
| ... | ... | ... | ... | ... | ... | ... | ... |
| 108434 | RHEA:21240 | EC:2.5.1.59 | NaN | rhea_reactionid | rhea_ec | False | reaction_ec |
| 108435 | RHEA:21240 | EC:2.5.1.60 | NaN | rhea_reactionid | rhea_ec | False | reaction_ec |
| 108436 | RHEA:21244 | EC:2.1.1.70 | NaN | rhea_reactionid | rhea_ec | False | reaction_ec |
| 108437 | RHEA:21248 | EC:2.7.7.6 | NaN | rhea_reactionid | rhea_ec | False | reaction_ec |
| 108438 | RHEA:21248 | EC:2.7.7.48 | NaN | rhea_reactionid | rhea_ec | False | reaction_ec |
108439 rows × 7 columns
df_rhea_edges['ec_level'].value_counts(dropna=False)
ec_level
NaN 101957
subsubclass->EC_number 6153
subclass->subsubclass 253
main_class->subclass 76
Name: count, dtype: int64
df_rhea_nodes['ec_level'].value_counts(dropna=False)
ec_level
NaN 31506
full_ec 6153
subsubclass 253
subclass 76
main_class 7
Name: count, dtype: int64
